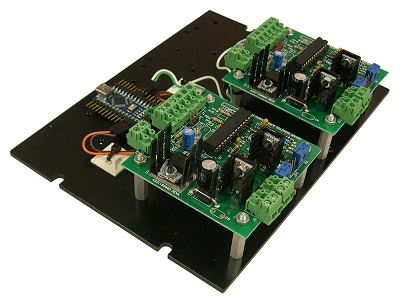

Solenoid Control Module

Solenoid Control Module




Similar Solenoid Controller and Driver Products

Pick and Hold Module
Proportional (PWM) Module
Closed Loop Solenoid Position Control Module
Pick and Drop Module
Load On-Off Power Cycling Module
Dual Proportional Valve Controller
Serially Controlled Solenoid Driver
Solenoid Control System
Related Products

Power Supplies
Solenoids
Features
  • Compact

  • Plug-and-Play

  • Stand-alone

  • Runs Multiple Devices Simultaneously

  • Complete Unit Integrates Controller, and Drivers

  • Quick and Easy to Install

  • Very Compact and Easy to Use

  • Capable of Running Script Command

  • Different Modes of Operation:
    1) Host Controlled

    2) Stand-alone, No PC Required to Operate

Typical Applications
  • Life Cycling

  • Endurance Testing

  • Shock and Vibration Testing

  • Vibration Cancellation

Software

  • Easy System Setup and Evaluation

  • Menu Driven

  • Free Software Included





The Solenoid Control System is designed for Cycling and Endurance Testing of electro-mechanical components like solenoids, relays, electromagnets, motors, actuators.

The system may be used as both an engineering evaluation and production quality assurance tool. Each system may drive up to thirty two independent devices with different actuation profiles.

The typical applications of the tester is life cycling of the solenoids, electro-magnets, relays, motors, voice coil motors, actuators, valves, keyboards, switches, and other applicable devices. The other applications of LC tester is testing and evaluation of shock and vibration systems.

The compact and stand-alone unit consists of controller,  drivers, and the power supplies. It conveniently connects to the serial port of the host computer.

The system may be controlled in different ways;

1 ) Externally Controlled
In this mode, the external host such as a PC, micro-controller or PLC sends a series of commands to the controller via the RS-232 serial port. The controller processes and performs the incoming commands and responds with proper messages.

2 ) Externally Triggered
In this mode, the external host such as a PC, micro-controller or PLC sends the controlling pulses to activate the solenoids.



The module interfaces to a wide variety of analog and digital transducers to monitor the output process. These include LVDTs, RVDTs, Proximity Sensors, Accelerometers, Optical Encoders, Laser Interferometers, Pressure Sensors and other similar devices.


TECHNICAL DATA

Actuators
  • Linear and Rotary Solenoids

  • Voice Coil Actuators

Actuator Driver
  • Excellent Linearity

  • Pulse Width Modulated (PWM)

  • Wide Output Voltage

  • High Output Current

  • Current Controlled or Voltage Controlled

Mechanical

  • Size: 8.0'' (203.2 mm) L X  6.0" (152.4 mm) W

Power Requirement

  • +12 VDC to +50 VDC



Communication Interface
  • USB Interface

Feedback Devices
  • Proximity Sensors

  • LVDTs and RVDTs

  • Laser Interferometers

  • Pressure Transducers

  • Any Analog Signal

  • Absolute and Incremental Optical Encoders

General Specifications
  • LED Power Indicator




Ordering Information

Part No. Description Amount
SCM -PH-xx Solenoid Control System, Incorporating Pick and Hold Module Click to Get a Quote
SCM -PWM-xx Solenoid Control System, Incorporating PWM Module Unit Click to Get a Quote
SCM -EXT-xx Solenoid Control System,  Incorporating Pick and Hold Module , Externally Triggered Click to Get a Quote

xx denotes the number of the solenoid drivers.
