Solenoid Control System
|
|
|
Features
- Compact
- Plug-and-Play
- Stand-alone
- Runs Multiple Devices Simultaneously
- Complete Unit Integrates Controller, Power Supplies and Drivers
- Quick and Easy to Install
- Very Compact and Easy to Use
- Capable of Running Script Command
- Different Modes of Operation:
1) Host Controlled
2) Stand-alone, No PC Required to Operate
|
|
Typical
Applications
- Life Cycling
- Endurance Testing
- Shock and Vibration Testing
- Vibration Cancellation
Software
-
Easy System Setup and Evaluation
-
Menu Driven
- Free Software Included
|
|
The Solenoid Control System is designed for Cycling and Endurance Testing of electro-mechanical components like solenoids, relays, electromagnets, motors, actuators.
The system may be used as both an engineering evaluation and production
quality assurance tool. Each system may drive up to thirty two independent
devices with different actuation profiles.
The typical applications of the tester is life cycling of the
solenoids, electro-magnets, relays, motors, voice coil motors, actuators, valves,
keyboards, switches, and other applicable devices. The other applications
of LC tester is testing and evaluation of shock and vibration systems.

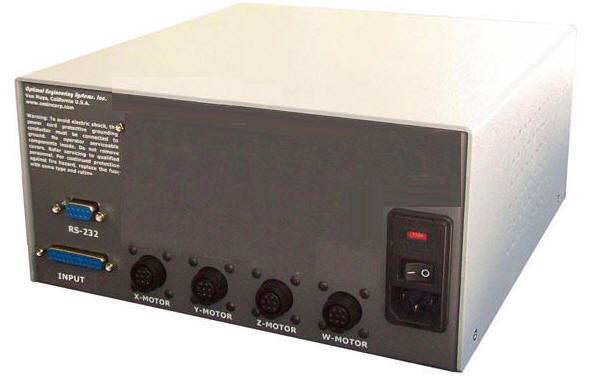

The compact and stand-alone unit consists of
controller, drivers, and the power
supplies. It conveniently connects to the serial port of the
host computer.
The system
may be controlled in different ways;
1)
Externally Controlled
In this mode, the external host such as a PC,
micro-controller or PLC sends a series of
commands to the controller via the RS-232 serial
port. The controller processes and performs the
incoming commands and responds with proper
messages.
2
)
Externally Triggered
In this mode, the external host such as a PC,
micro-controller or PLC sends the controlling
pulses to activate the solenoids.
|
|
|
The system interfaces to a wide variety of analog and digital
transducers to monitor the output process. These include LVDTs, RVDTs,
Proximity Sensors, Accelerometers, Optical Encoders, Laser
Interferometers, Pressure Sensors and other similar devices.
|
|
|
Actuators
- Linear and Rotary Solenoids
- Voice Coil Actuators
Actuator Driver
- Excellent Linearity
- Pulse Width Modulated (PWM)
- Wide Output Voltage
- High Output Current
- Current Controlled or Voltage Controlled
Mechanical
- Size: 10.0'' (254.0 mm) W X 10.8" (265.0 mm) D X 4.875"
(124.0 mm) H
- Material: Aluminum, 0.09" (2.3 mm) Thickness
- Available in 19" Rack Mount Enclosure
Power Requirement
- 115 VAC, 50 ~ 60 Hz Or
- 230 VAC, 50 ~ 60 Hz Or
- +12 VDC to +50 VDC
|
Communication Interface
Feedback
Devices
- Proximity Sensors
- LVDTs and RVDTs
- Laser Interferometers
- Pressure Transducers
- Any Analog Signal
- Absolute and Incremental Optical Encoders
General
Specifications
- LED Power Indicator
- High Performance Line Filter
- Compact Industrial Enclosure
- Drives up to 32 Devices Simultaneously
|
|
Actuators
- Linear and Rotary Solenoids
Voice Coil Actuators
Actuator Driver
Pulse Width Modulated (PWM)
Wide Output Voltage
High Output Current
Current Controlled or Voltage Controlled
Mechanical
- Size: 10.0'' (254.0 mm) W X 10.8" (265.0 mm) D X 4.875"
(124.0 mm) H
- Material: Aluminum, 0.09" (2.3 mm) Thickness
-
Available in 19" Rack Mount Enclosure
Power Requirement
- 115 VAC, 50 ~ 60 Hz Or
- 230 VAC, 50 ~ 60 Hz Or
- +12 VDC to +50 VDC
|
Communication Interface
Feedback
Devices
LVDTs and RVDTs
Laser Interferometers
Pressure Transducers
Any Analog Signal
Absolute and Incremental Optical Encoders
General
Specifications
- LED Power Indicator
- High Performance Line Filter
- Compact Industrial Enclosure
- Drives up to 32 Devices Simultaneously
|
Ordering Information
xx denotes the number of the solenoid drivers.
|
