Trackball





  • Two channels of quadrature output
  • Three general purpose switches

  • Long Life

Trackball Interface
9-pin mini DIN Connector
Cable Length = 6.0 (180 cm)

PIN

NAME

DESCRIPTION

1

+5 VDC

+5 VDC

2

XA

Phase XA Quadrature Output, TTL Compatible

3

XB

Phase XB Quadrature Output, TTL Compatible

4

YA

Phase YA Quadrature Output, TTL Compatible

5

YB

Phase YB Quadrature Output, TTL Compatible

6

SW1

Lower Left Switch, TTL Compatible, Active High

7

SW2

Lower Right Switch, TTL Compatible, Active High

8

SW3

Upper Right Switch, TTL Compatible, Active High

9

GND

System Ground

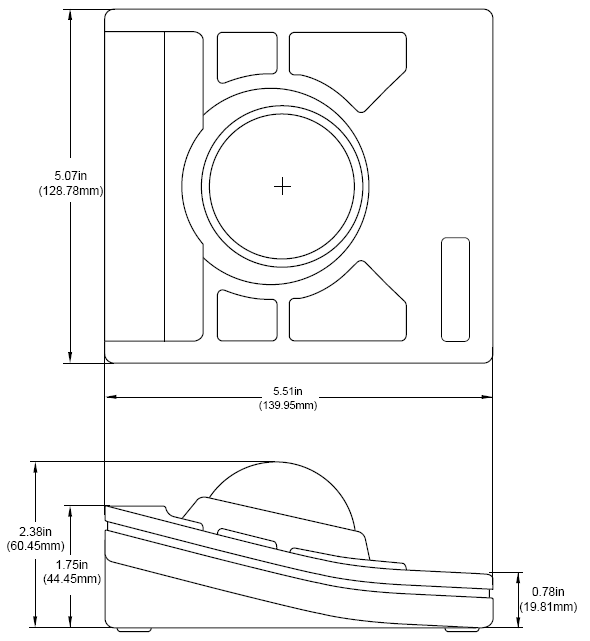

Mechanical Specifications

Ordering Information

Part No. Description Amount
TRKBL-01 Pre-wired Trackball with Quadrature Signals Click to Get a Quote
