This motorized
X-axis positioning is made of aluminum alloy.

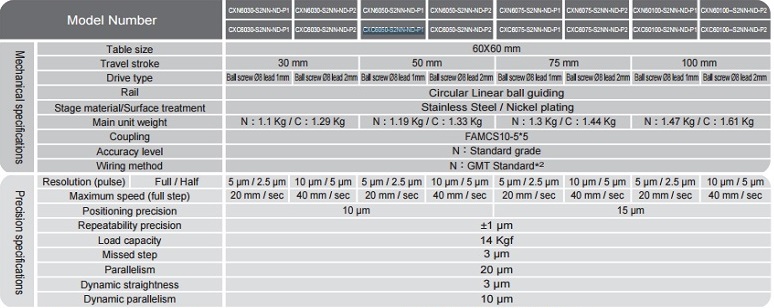

The stage size is 60 x 60 mm.
The Range of Travel is 100 mm.
The Load Capacity is 14 kg.
The resolution is 0.5 microns / 0.25 microns with 10 / 20 micro-steps per step motor driver.
The typical repeatability accuracy is ± 1 microns.
The typical positioning accuracy is 15 microns.
The maximum speed is 20 mm / sec.
|
