Motorized Z-axis Table

Home >  Assorted Motorized Multi-axis Stages >  Motorized Z-axis Linear Positioning Stages

Vertical Stage 140-Series

This motorized positioning table is made of aluminum alloy with an elegant black anodized surface.

It provides 800 mm of travel at a maximum speed with stepper motor of 40 mm per second. The drive mechanism is lead screw.

The bench size is 160 X 160 mm and has a body weight of 8.3 Kg.

The maximum load of this stage table is 15 Kg.

The resolution of 2 microns is achieved with a 10 micro-steps per step stepper motor driver. This linear stage isalso available with a Three Phase Brushless Servo Motor, DC Servo Motor and Optical Encoder.

The knob mounted on the motor allows for manual adjustment. This knob may be replaced with an  Optical Encoder  for precision position verification.

This stage requires a Motion Controller that can be ordered as a complete plug-and-play system with RS-232, USB, joystick, trackball, and keypad control.



Specifications

Type

Z140-800

Structure Description

Travel

800 mm

Stage Size 120×120 mm
Lead Screw Pitch 4 mm per turn
Travel Guide

High Precision Linear Ball Bearing

Two-Phase Stepper Motor (1.8°)
Typical Phase Resistance 3.8 Ohms,  Bi-directional
Typical Phase Current 1 Amp
DB-9 Male Connector
Pin Assignment and Description

1

+5 VDC

2

CW Limit Switch, Open Collector, Normally Open, Needs Pull up Resistor

3

CCW Limit Switch, Open Collector, Normally Open, Needs Pull up Resistor

4

Common

5

Not Connected

6 Stepper Motor Phase A+
7 Stepper Motor Phase A-
8 Stepper Motor Phase B+
9 Stepper Motor Phase B-



Body Material Aluminum Alloy
Surface Treatment Black Anodized
Load Capacity 15 kg
Weight 8.3 kg

Typical Accuracy

Resolution Control Electronics Dependent, 2 microns with 10 Micro-steps per Step Motor Driver in use
1 µ/Pulse (20 Micro-steps per Step Motor Driver in use)
maximum speed with stepper motor 50 mm/sec
Maximum Speed with Servo Motor
Positioning Accuracy 10 microns

Accessories Description


Three Phase Brushless Servo Motor and Optical Encoder (-02 Version)
DC Servo Motor and Optical Encoder (-03 Version)
Optical Encoder (-04 Version)


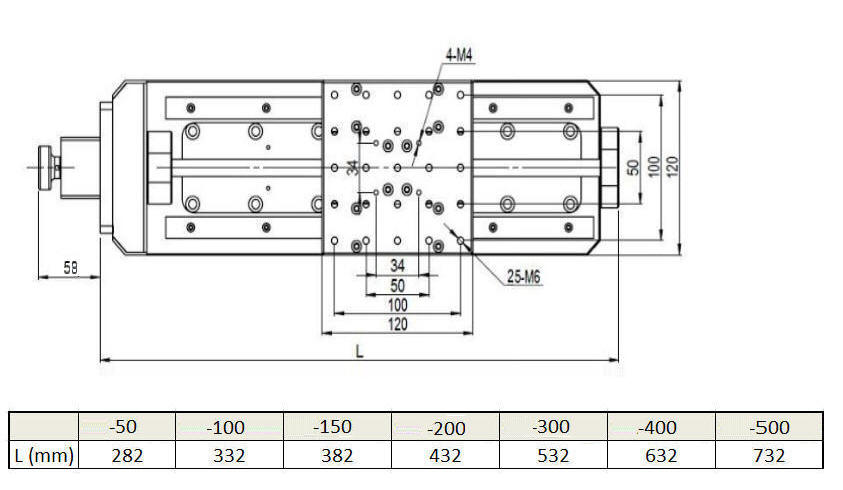

Stepper Motor Driven Mechanical Drawing

Stepper Motor Driven Single-axis Vertical Stage, Travel: 800 mm

Click to Get the STEP file

 Ordering Information



Part No. Description Amount
Z140-800-01 Stepper Motor Driven Single-axis Vertical Stage, Travel  : 800 mm Click to Get a Quote
Z140-800-02 Three Phase Brushless Servo Motor with Quadrature Incremental  Optical Encoder Driven Vertical Stage, Travel  : 800 mm Click to Get a Quote
Z140-800-03 DC Servo Motor with Quadrature Incremental  Optical Encoder  Driven Vertical Single-axis Stage, Travel  : 800 mm Click to Get a Quote
Z140-800-04 Stepper Motor Driven Single-axis Vertical Stage with 500 Cycles per Revolution Quadrature Optical Encoder Mounted at the back of the Stepper Motor, Travel  :800 mm Click to Get a Quote

OES line of Motion Controllers Motion Controllers
