Motorized XYZ-axis Table

Home > Assorted Motorized Multi-axis Actuators > Low Cost Linear Three-axis XYZ Stages




This motorized three-axis XYZ positioning table is made of aluminum alloy with an elegant black anodized surface.

It provides 300 mm of travel at a maximum speed of 10 mm per second. The drive mechanism is lead screw.

The bench size is 120 X 120 mm.

The maximum load of this stage table is model dependent.

This linear stage is also available with a servo motor and optical encoder.

The knob mounted on the motor allows for manual adjustment. This knob may be replaced with an optical encoder for precision position verification.

This stage requires a Motion Controller that can be ordered as a complete plug-and-play system with RS-232, USB, joystick, trackball, and keypad control.

Specifications

Type

XYZ140-300

Structure Description

Travel

300 mm

Table Size 120×120 mm
Lead Screw Pitch 4 mm per turn
Travel Guide

High Precision Crossed Roller

Motor
Two-Phase Stepper Motor (1.8°)
Phase Resistance 3.8 Ohm, Bi-directional
Maximum Phase Current 1 Amp
9 pin DB-9 Male Connector
Pin Assignment and Description
1 +5 VDC for the Limit Sensors
2 Positive Limit Switch, Open Collector, Normally Open, Needs Pull up Resistor (1000 OHM)
3 Negative Limit Switch, Open Collector, Normally Open, Needs Pull up Resistor (1000 OHM)
4 Return for+5 VDC
5
6 Motor Phase A+
7 Motor Phase A-
8 Motor Phase B+
9 Motor Phase B-
Main Material Aluminum Alloy
Surface Treatment Black Anodized
Load Capacity Model Dependent
Weight 20.0 kg

Typical Accuracy

Resolution 2 microns with 10 Micro-steps per Step Motor Driver in use
Maximum Speed 50 mm/sec
Repeatability 5 microns
Positional Accuracy 10 microns

Accessories Description


Optical Encoder (-04)
Servo Motor

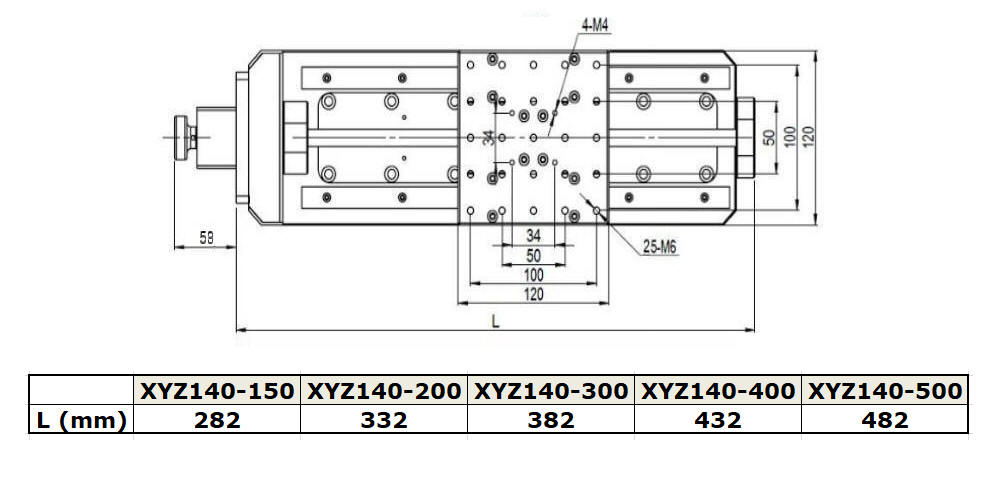

Stepper Motor Driven Mechanical Drawing


Click to Get the STEP file of XYZ140-300.

 Ordering Information

Part No. Description Amount
XYZ140-300 Stepper Motor Driven Three-axis XYZ Stage, Travel  : 300 mm Click to Get a Quote

Motion Controllers
