Motorized XYZ-axis Table

Home > Assorted Motorized Multi-axis Actuators > Low Cost Linear Three-axis XYZ Stages

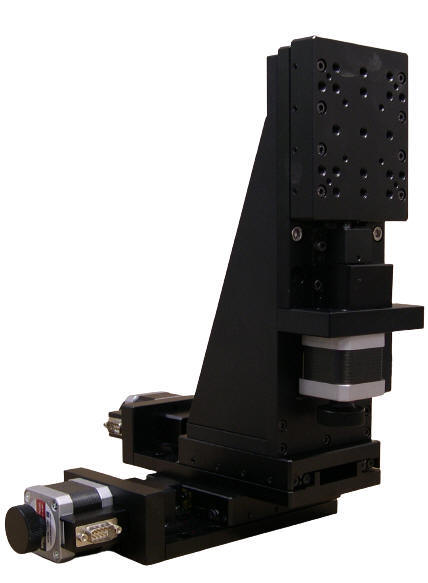

This motorized three-axis XYZ positioning table is made of aluminum alloy with an elegant black anodized surface.

It provides 30 mm of travel at a maximum speed of 10 mm per second. The drive mechanism is lead screw.

The bench size is 90 X 90 mm and has a body weight of 4.9 Kg.

This linear stage is also available with a servo motor and optical encoder.

The knob mounted on the motor allows for manual adjustment. This knob may be replaced with an optical encoder for precision position verification.

This stage requires a Motion Controller that can be ordered as a complete plug-and-play system with RS-232, USB, joystick and keypad control..

Specifications

Type

XYZ110-30

Structure Description

Travel

30 mm

Table Size

90x90 mm

Lead Screw Pitch

1 mm per turn

Travel Guide

High Precision Crossed Roller

Motor

Two-Phase Stepper Motor (1.8 Deg)

Phase Resistance	3.8 Ohm, Bi-directional
Maximum Phase Current	1 Amp
9 pin DB-9 Male Connector
Pin Assignment and Description
1	+5 VDC for the Limit Sensors
2	Positive Limit Switch, Open Collector, Normally Open, Needs Pull up Resistor (1000 OHM)
3	Negative Limit Switch, Open Collector, Normally Open, Needs Pull up Resistor (1000 OHM)
4	Return for+5 VDC
5	Not Connected
6	Motor Phase A+
7	Motor Phase A-
8	Motor Phase B+
9	Motor Phase B-

Main Material

Aluminum Alloy

Surface Treatment

Black Anodized

Load Capacity

10 kg

Weight

4.9 kg

Typical Accuracy

Resolution

Control Electronics Dependent, 0.5 microns with 10 Micro-steps per Step Motor Driver in use

0.25 microns with 20 Micro-steps per Step Motor Driver in use

Maximum Speed

10 mm/sec

Repeatability

5 microns

Positional Accuracy

10 microns

Accessories Description

Optical Encoder (-04)

Servo Motor

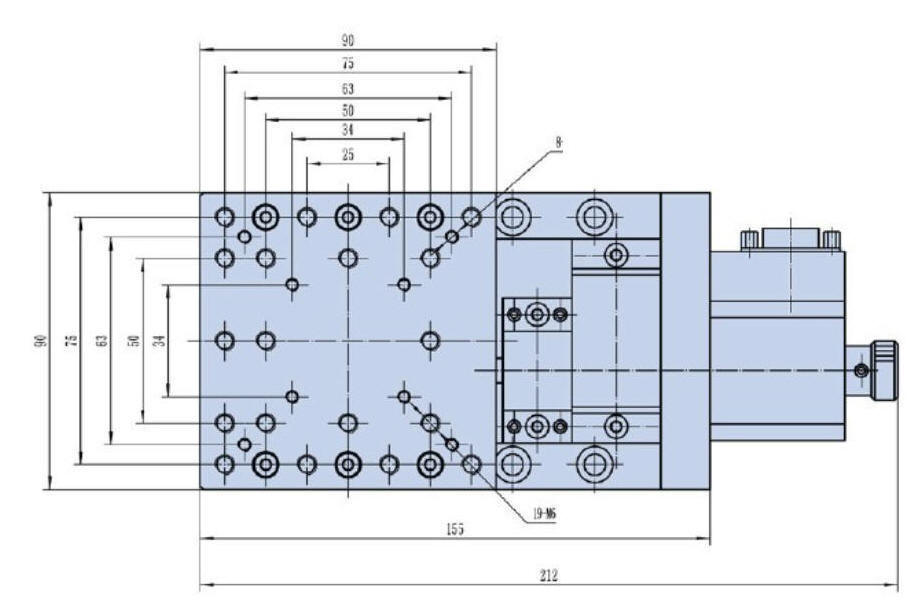

Stepper Motor Driven Mechanical Drawing

Stepper Motor Driven Single-axis Vertical Stage, Travel : 30 mm

Click to Get the STEP file of XYZ110-30.

Ordering Information

Part No.	Description	Amount
XYZ110-30	Stepper Motor Driven Three-axis XYZ Stage, Travel : 30 mm	Click to Get a Quote
