Motorized XY-axis Table

Home > Assorted Motorized Multi-axis Actuators > Low Cost Linear Two-axis XY Stages

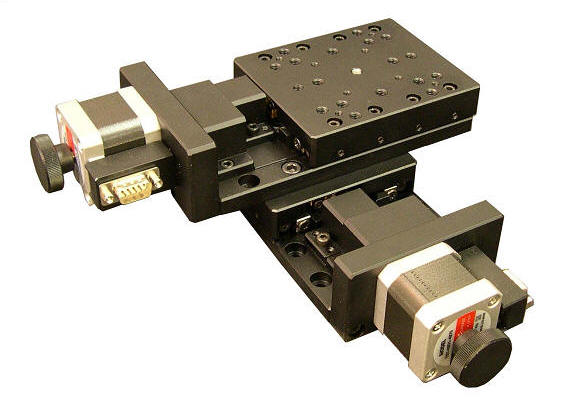

This motorized two-axis XY positioning table is made of aluminum alloy with an elegant black anodized surface.

It provides 400 mm of travel at a maximum speed of 50 mm per second. The drive mechanism is lead screw.

The bench size is 120 X 120 mm.

The maximum load of this stage table is 15 Kg.

This linear stage is also available with a Servo Motor and optical encoder.

The knob mounted on the motor allows for manual adjustment. This knob may be replaced with an optical encoder for precision position verification.

This stage requires a Motion Controller that can be ordered as a complete plug-and-play system with RS-232, USB, joystick, trackball, and keypad control.


Video Demonstration

Specifications

Type

XY140-300

Structure Description

Travel

400 mm

Table Size 120 mm x 120 mm
Lead Screw Pitch 4 mm per turn
Travel Guide

High Precision Crossed Roller

Motor

DB9 Male pinout

Two-Phase Stepper Motor (1.8°)
Phase Resistance 2.3 Ohm, Bi-directional
Maximum Phase Current 2 Amp
9 pin DB-9 Male Connector
Pin Assignment and Description
1 +5 VDC for the Limit Sensors
2 Positive Limit Switch, Open Collector, Normally Open, Needs Pull up Resistor (1000 OHM)
3 Negative Limit Switch, Open Collector, Normally Open, Needs Pull up Resistor (1000 OHM)
4 Return for+5 VDC
5 Not Connected
6 Motor Phase A+
7 Motor Phase A-
8 Motor Phase B+
9 Motor Phase B-
Main Material Aluminum Alloy
Surface Treatment Black Anodized
Load Capacity 15 kg
Weight 14.4 kg

Typical Accuracy

Resolution Control Electronics Dependent, 2.5 microns with 10 Micro-steps per Step Motor Driver in use
Maximum Speed 50 mm/sec
Repeatability 5 microns
Positional Accuracy 10 microns

Accessories Description


Optical Encoder (-04)
Servo Motor (-02)


Stepper Motor Driven Mechanical Drawing


Click to Get the STEP file of XY140-400.

 Ordering Information

Part No. Description Amount
XY140-400 Motorized Linear Three-axis XYZ Stage, Travel  : 400 mm Click to Get a Quote
