Stepper Motor Driven Linear Single-axis Stage, Travel: 100 mm, Table Size 150 mm by 150 mm

This motorized positioning table is made of aluminum alloy with an elegant black anodized surface.

It provides 100 mm of travel at a Maximum Speed with Stepper Motor of 40 mm per second. The drive mechanism is lead screw.

The bench size is 150 X 150 mm and has a body weight of 3.4 Kg.

The maximum load of this stage table is 20 Kg.

The resolution of 2 microns is achieved with a 10 micro-steps per step stepper motor driver. This linear stage is
also available with a Three Phase Brushless Servo Motor and Optical Encoder (-02 Version)

The knob mounted on the motor allows for manual adjustment. This knob may be replaced with an Optical Encoder (-04 Version) for precision position verification.

This stage requires a Motion Controller that can be ordered as a complete plug-and-play system with RS-232, USB, joystick, trackball, and keypad control.


Video Demonstration

Specifications

Type

AQ150-100H

Structure Description

Travel

100 mm

Stage Size 150×150 mm
Lead Screw Pitch  4 mm per turn
Travel Guide

High Precision Linear Slide Guide

Two-Phase Stepper Motor (1.8°)
Typical Phase Resistance 3.8 Ohms,  Bi-directional
Typical Phase Current 1 Amp
DB-9 Male Connector
Pin Assignment and Description

1

+5 VDC

2

Near Motor Limit Switch Limit Switch, Open Collector, Normally Open, Needs Pull up Resistor

3

Far End Limit Switch Limit Switch, Open Collector, Normally Open, Needs Pull up Resistor

4

Common

5

Not Connected

6 Stepper Motor Phase A+
7 Stepper Motor Phase A-
8 Stepper Motor Phase B+
9 Stepper Motor Phase B-



Body Material Aluminum Alloy
Surface Treatment Black Anodized
Load Capacity 20 kg
Weight 3.4 kg

Typical Accuracy

Resolution 2 microns per Step with 10 Micro-steps per Step Motor Driver in use
1 micron per Step with 20 Micro-steps per Step Motor Driver in use
Maximum Speed with Stepper Motor 25 mm/sec
Maximum Speed with Servo Motor
Positioning Accuracy 10 microns

Accessories Description

Optical Encoder (-04 Version)
Three Phase Brushless Servo Motor and Optical Encoder (-02 Version)

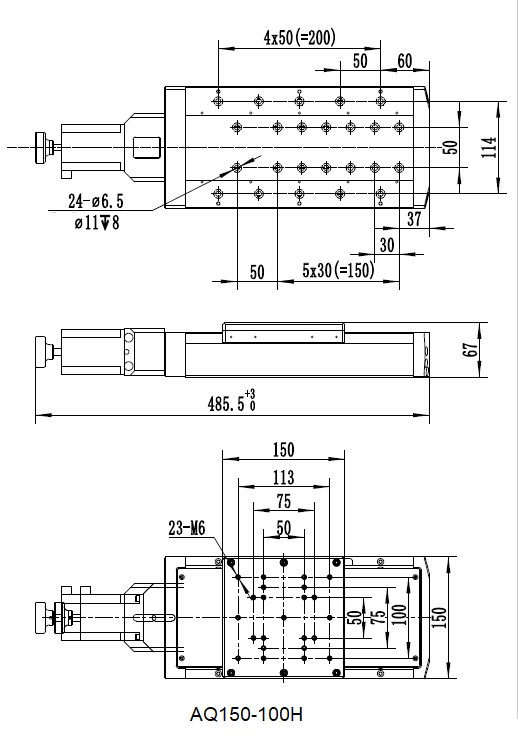

Stepper Motor Driven Mechanical Drawing

Click to get the STEP file

 Ordering Information

Part No. Description Amount
AQ150-100H-01 Stepper Motor Driven Linear Single-axis Stage, Travel: 100 mm Click to Get a Quote
AQ150-100H-02 Three Phase Brushless Servo Motor with Quadrature Incremental Optical Encoder Driven Linear Single-axis Stage, Travel: 100 mm Click to Get a Quote
AQ150-100H-03 DC Servo Motor with Quadrature Incremental Optical Encoder Driven Linear Single-axis Stage Click to Get a Quote
AQ150-100H-04 Stepper Motor Driven Linear Single-axis Stage with 500 Cycles per Revolution Quadrature Optical Encoder Mounted at the back of the Stepper Motor Click to Get a Quote
